Customizable White & Green LED 7-Segment Display for Electric Scooters

Customizable White & Green LED 7-Segment Display for Electric Scooters

Marka Adı:	LIGHT-BO
Model Numarası:	LB6031DWRG3S-T2-D-JT
Adedi:	1000
fiyat:	Negotiate
Ödeme Şartları:	T/T, Western Union
Tedarik Yeteneği:	20000 pcs/gün

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri:

Shenzhen ， Çin

Sertifika:

ISO9001&RoHS

Modeli:

İsteğe bağlı olarak standart, özel model

Malzeme:

PVC, Epoksi reçine, LED çip

Mükemmel fonksiyonel perfermace

Garanti:

İki yıl

Renk Yayan:

Beyaz Yeşil

Başvuru:

Sıcaklık kontrolü

Ambalaj bilgileri:

Epe+karton

Yetenek temini:

20000 pcs/gün

Vurgulamak:

customizable LED 7-segment display

white green LED scooter display

electric scooter LED display

Ürün Tanımı

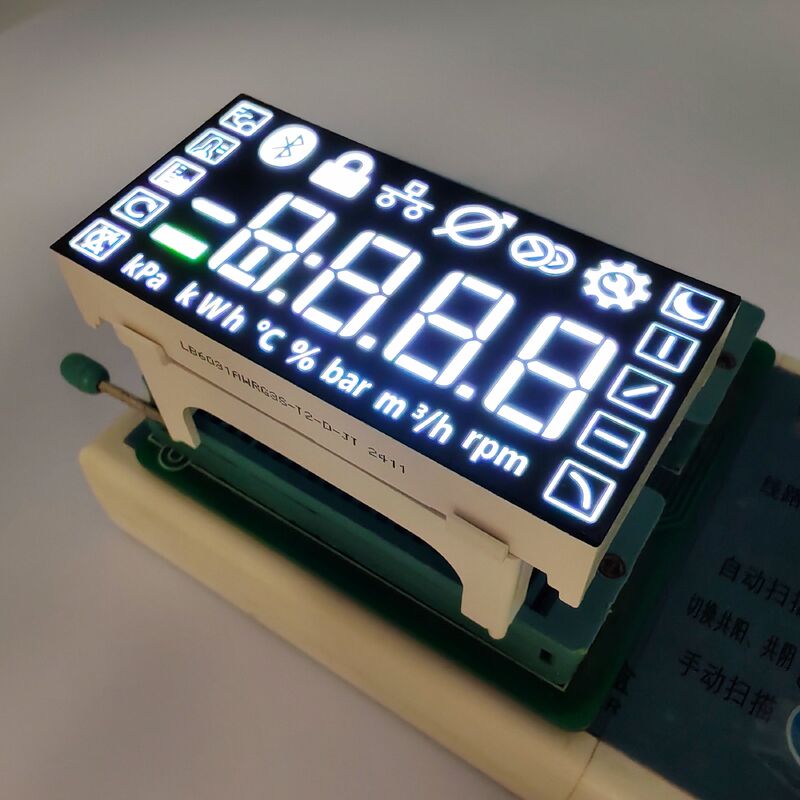

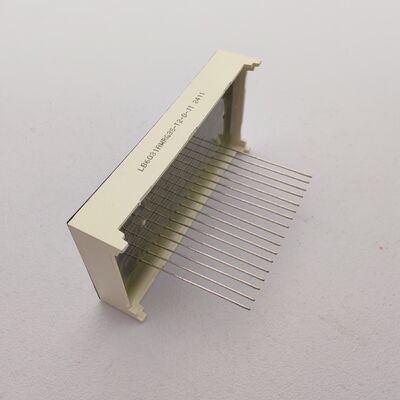

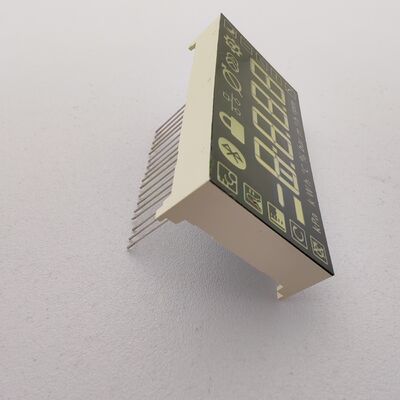

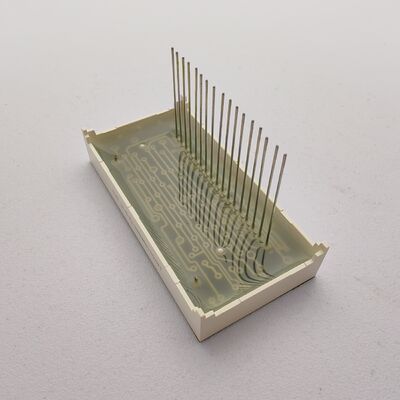

Customizable White & Green LED 7-Segment Display for Electric Scooters

High-performance LED display solution designed specifically for electric scooter applications, offering superior visibility and customization options.

Product Specifications

Product Name	Customizable White & Green LED 7-Segment Display for Electric Scooters	Other color and configuration options available
Part Number	LB6031DWRG3S-T2-D-JT	Custom part number printing supported
Standard Color	White & Green	Also available in white, blue, pure green, yellow-green, orange, etc.
Polarity	Common Anode	Common Cathode option available
Lifespan	80,000 hours	-
Free Samples	Available	-
Sample Lead Time	5-7 working days (standard samples) 15-20 working days (tooling samples)	-
Production Lead Time	15-20 working days	May vary depending on order quantity
OEM & ODM	Supported	Customization based on your drawings or ideas
LOGO Printing	Supported	According to your provided drawing or design
Minimum Order Quantity (MOQ)	1,000 PCS	100-500 PCS acceptable for initial orders

Key Features

High Luminous Efficiency: Operates at forward voltage with high-intensity output, ensuring brilliant and efficient performance
Low Power Consumption: Energy-saving operation with extremely low operating current
Uniform Illumination: Evenly distributed brightness across all segments for flawless visual consistency
Standard Sizing: Industrial standard dimensions for seamless system integration
High Reliability in Bright Light: Exceptional visibility and reliable performance in bright ambient conditions
Stable Performance: Consistent and unwavering reliability for long-lasting operation
Long Lifespan: Extended operational life minimizing replacement needs
Environmental Compliance: Meets RoHS and REACH standards for environmentally responsible performance

Technical Parameters

Yellow Green - J/JU

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	30		40	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	569		574	nm

Amber/Yellow - Y

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.5	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	60		80	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	585		595	nm

Absolute Maximum Ratings (Ta=25ºC)

Parameter	Symbol	Ratings	Unit
Forward Current (per dice)	Ipm	20	mA
Reverse Voltage (per dice)	Vr	5	V
Power Dissipation (per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	ºC
Storage Temperature Range	Tstg	-40~+85	ºC
Solder Temperature (≤3 seconds)	Th	260	ºC

Manufacturer Information

Shenzhen Guangzhibao Technology Co., Ltd. (BRAND: LIGHT-BO), established in 2006, symbolizes excellence in OEM and ODM services. As an ISO 9001:2015 certified leader, our legacy of over 15 years is marked by quality and innovation.

LIGHTBO propels clients to new heights with high-quality, cost-effective custom solutions, reducing expenses and fortifying competitive advantages globally.

Applications

7 Segment LED Display, Customized LED Display, Numeric LED Display, Dot Matrix LED Display: Our innovative products find applications in home appliances, temperature and humidity indicators, refrigerator controllers, thermostats, and heating and cooling systems, showcasing our commitment to performance.

Frequently Asked Questions

Q1: Are you trading company or manufacturer?

A: We are original manufacturer with more than 20 years experience in optoelectronic LED displays.

Q2: What is your main products?

A: Our main products include 7 Segment LED display, SMD LED Display, Dot matrix LED Display, Arrow LED display, Custom Design LED Display, LED light bar, Through hole led, SMD LEDs, LED Backlights, and more.

Q3: What is your MOQ?

A: Our MOQ is 1000 pcs, but we can also accept sample orders and small orders with quantity less than our MOQ.

Q4: Before placing order, Can I get some samples for test?

A: Yes. We can provide 5-10 free samples for your testing, but the freight cost will be borne by the customer.

Q5: How long is your delivery time?

A: Delivery time: About 10-20 days; According to order quantity and raw materials. If you have urgent order and we have raw materials in stock, we can adjust our production plan to make it ready within 7-10 days.
