Red 4 Digit 7 Segment LED Clock Display for Home Appliances

Red 4 Digit 7 Segment LED Clock Display for Home Appliances

Marka Adı:	LIGHT-BO
Model Numarası:	LB40254LR1B-T2
Adedi:	1000
fiyat:	Negotiate
Ödeme Şartları:	Önceden TT
Tedarik Yeteneği:	50000 ADET/Gün

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri:

Shenzhen Çin

Sertifika:

ISO9001&RoHS

Belge:

LB40254LR1A-T2.pdf

Spesifikasyon:

Video Duvarı, Dijital Poster

Yayan renk:

Süper Parlak Kırmızı

LED ömrü:

100000 saat

Paketleme boyutu:

28*10*5mm

Tedarikçi Türü:

ODM, OEM, Orijinal üretici

Aydınlık yoğunluk:

50-60MCD/LED

Ambalaj bilgileri:

Epe+karton

Yetenek temini:

50000 ADET/Gün

Vurgulamak:

red 7 segment LED clock display

4 digit LED display for appliances

custom LED clock display with warranty

Ürün Tanımı

Red 4 Digit 7 Segment LED Clock Display for Home Appliances

Product Specifications

Attribute	Value
Specification	Video Wall, Digital Poster
Emitting Color	Super bright RED
Led Life	100000 hours
Packing Size	28105mm
Supplier Type	ODM, OEM, Original manufacturer
Luminous Intensity	50-60mcd/led

Product Description

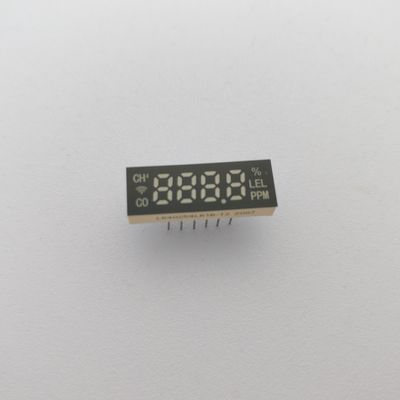

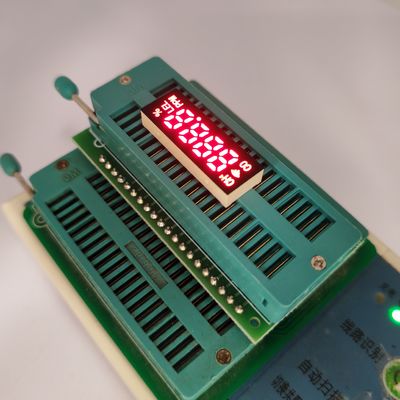

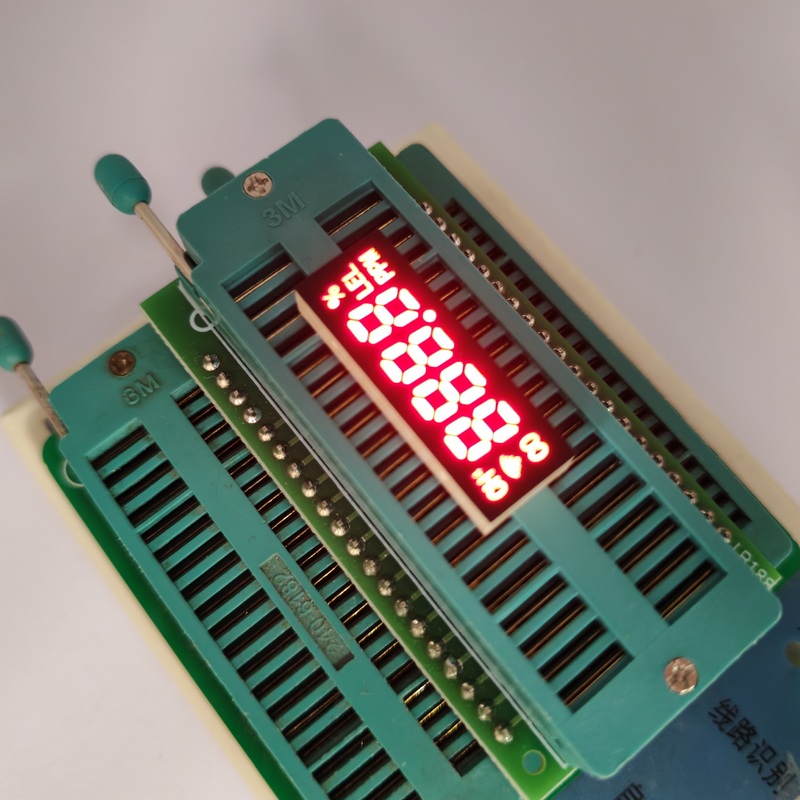

Red 4 Digit 7 Segment LED Clock Display

Character Height: 6.2 mm (0.24 inches)

Package Dimensions: 28.0 × 10.0 × 5.0 mm (L×W×H)

Display Type: Common cathode

Visual Design: High-contrast white segments on black background

Emission Color: Super bright red (dominant wavelength: 620-625 nm)

Luminous Intensity: 50-60 mcd (typical)

Forward Voltage (per segment): 1.8-2.2 VDC

Operating Current (per segment): 5-10 mA

Technical Specifications

Code: Orange -F

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	50		60	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	600		605	nm

Code: Super Bright Red -R

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	50		60	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	630		635	nm

Code: Ultra Bright Red -UR

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	90		100	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	620		625	nm

Code: Ultra Bright Blue -BH

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.6		3.0	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	100		120	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	460		470	nm
