Ultra White 5 Digit LED Display for Digital Indicators

Ultra White 5 Digit LED Display for Digital Indicators

Marka Adı:	LIGHTBO
Model Numarası:	LB50361IWH3B
Adedi:	1000
fiyat:	Negotiate
Ödeme Şartları:	T/T, Western Union
Tedarik Yeteneği:	20000 pcs/gün

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri:

Shenzhen ， Çin

Sertifika:

ISO9001&RoHS

Garanti Süresi:

3 Yıl

Renk:

Ultra parlak beyaz

Çalışma Sıcaklığı:

-20°C ila 50°C

Çözünürlük:

Boyut ve piksel aralığına göre özelleştirilebilir

Tedarikçi Türü:

ODM, OEM, Orijinal üretici

Yüz Rengi:

siyah yüz

Ambalaj bilgileri:

Epe+karton

Yetenek temini:

20000 pcs/gün

Vurgulamak:

5 digit LED display

ultra white LED indicator

custom digital LED display

Ürün Tanımı

Ultra White 5 Digit LED Display for Digital Indicators

Product Description

Specification	Standard	Custom Options
Digits	5	2, 3, 4, 5, 6 digits
Color	Ultra White	White, Blue, Green, Yellow-Green, Orange, etc.
Polarity	Common Anode	Common Cathode
Lifespan	80,000 hours	-
Free Samples	Supported	Tooling samples available
Sample Lead Time	5-7 days	15-20 days (tooling samples)
Production Lead Time	15-20 days	Based on order quantity
OEM/ODM	Supported	Based on customer drawing/idea
Logo Printing	Supported	Based on customer drawing/idea
MOQ	1,000 PCS	100-500 PCS (first order)

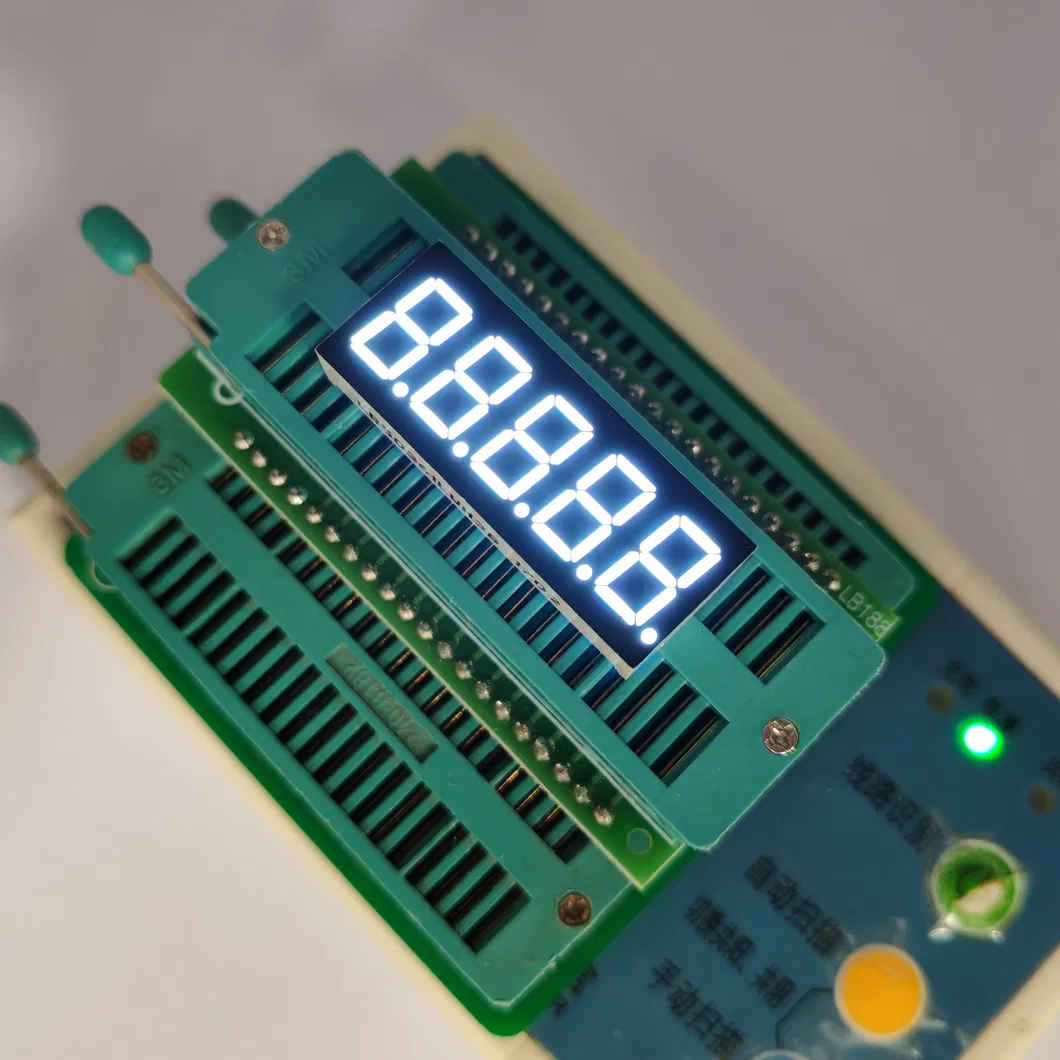

Ultra White 5 Digit LED Display for Digital Indicators 0

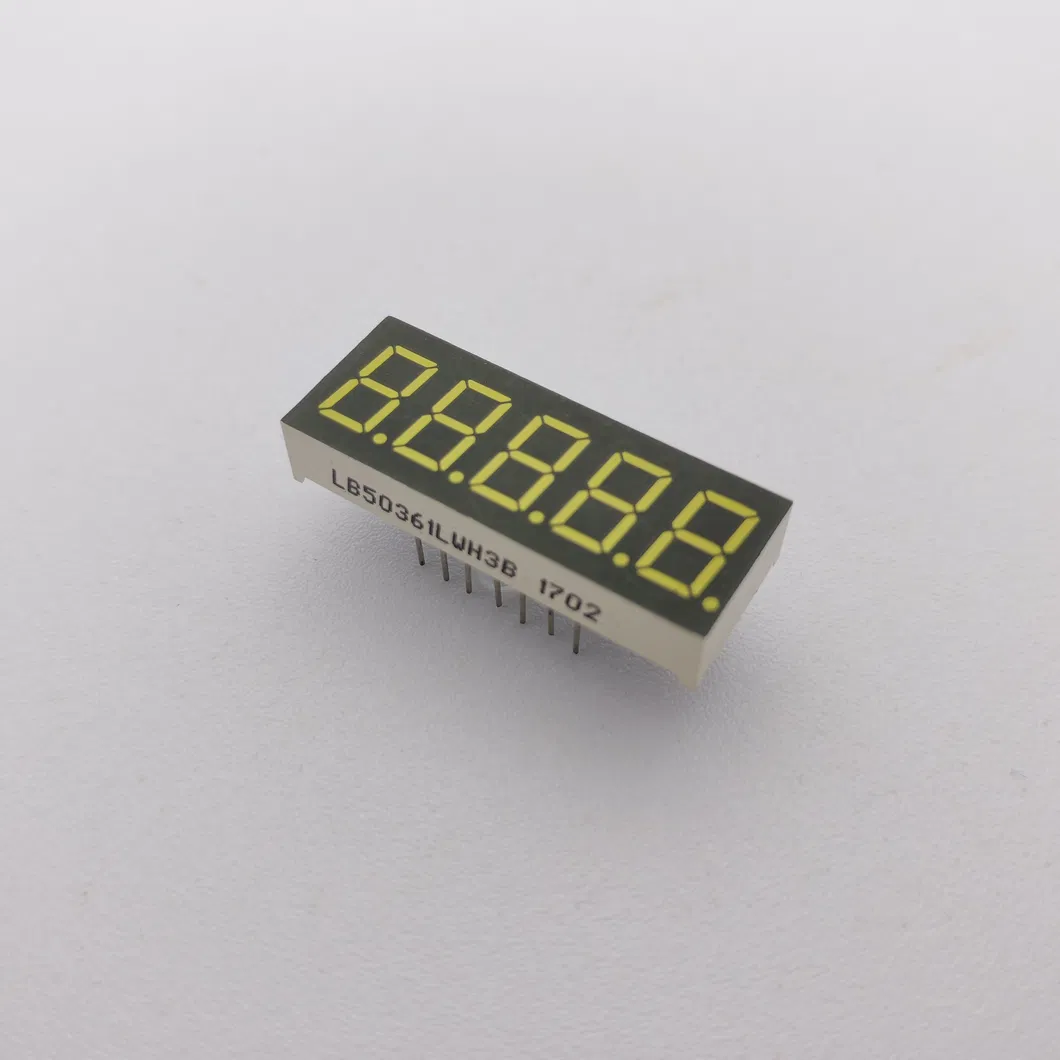

Ultra White 5 Digit LED Display for Digital Indicators 1

Product Parameters

Code: Yellow Green - J/JU

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	30		40	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	569		574	nm

Code: Amber/Yellow - Y

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.5	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	60		80	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	585		595	nm

Code: Orange - F

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	60		80	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	600		605	nm

Code: Super Bright Red - R

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	50		60	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	630		635	nm

Code: Ultra Bright Red - UR

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	80		100	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	625		635	nm

Color: Pure Green

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.6		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	120		180	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	515		525	nm

Code: Ultra Bright Blue - BH

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	120		140	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	460		465	nm

Code: Ultra Bright White - WH

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	120		140	mcd
LED color Temperature	K	If=10mA	5500	20	6800	K
Chromaticity Coordinates	X/Y	If=10mA	0.29,0.32		0.30,0.33	nm

Absolute Maximum Ratings (Ta=25ºC)

Parameter	Symbol	Ratings	Unit
Forward Current(per dice)	Ipm	20	mA
Reverse Voltage(per dice)	Vr	5	V
Power Dissipation(per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	ºC
Storage Temperature Range	Tstg	-40~+85	ºC
Solder Temperature(≤3 seconds)	Th	260	ºC

SHENZHEN GUANGZHIBAO TECHNOLOGY CO., LTD. (BRAND: LIGHT-BO) Established in 2006, Shenzhen Guangzhibao Technology Co., Ltd. is a beacon of excellence in the tech industry. With ISO 9001:2015 certification, we proudly leverage over 15 dynamic years of unparalleled OEM and ODM expertise, reinforcing our esteemed reputation for cutting-edge innovation and superior quality.
LIGHTBO is passionately devoted to offering outstanding, cost-effective custom solutions. Our steadfast dedication empowers our clients to significantly reduce expenses while amplifying their competitive advantage within the market landscape.

Products Applications

Ultra White 5 Digit LED Display for Digital Indicators 2 7 Segment LED Display, Customized LED Display, Numeric LED Display, Dot matrix LED Display: Explore the vast range of applications from home appliances to sophisticated temperature and humidity indicators, refrigerator controllers, thermostats, and comprehensive heating and cooling systems. Our unwavering commitment to excellence permeates every use case, underscoring the reliability and versatility of our products.

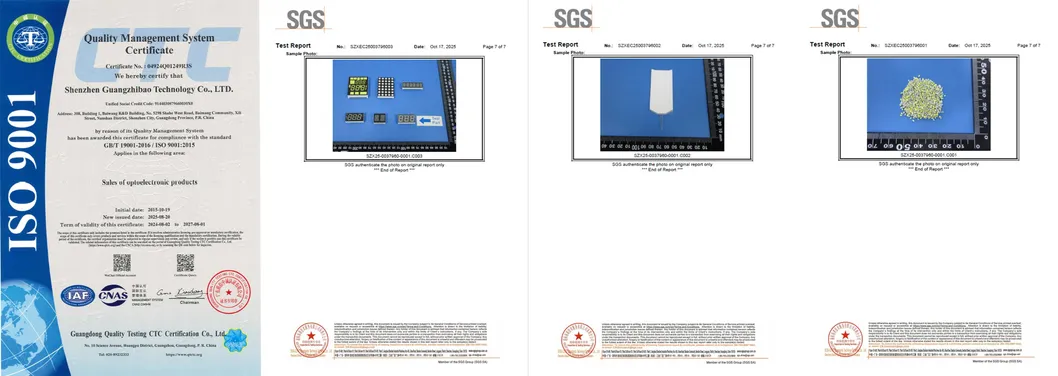

Certifications

Ultra White 5 Digit LED Display for Digital Indicators 3

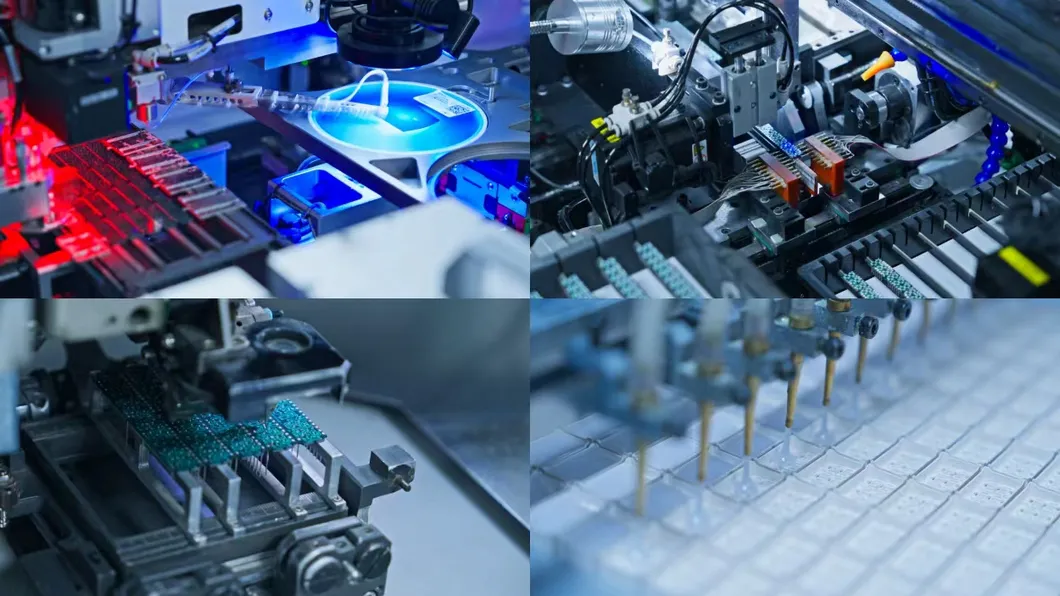

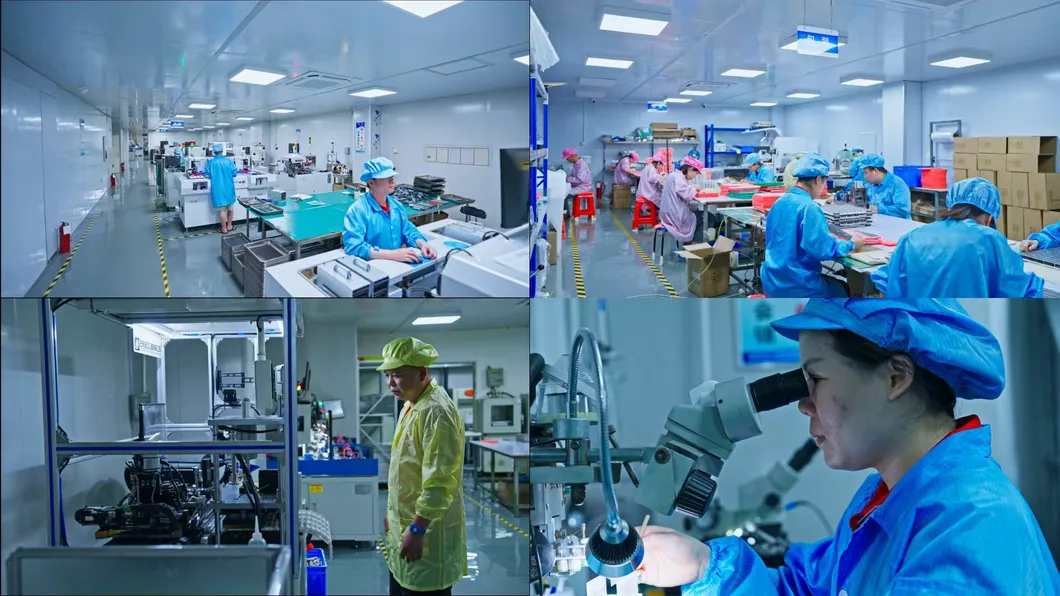

Office and Factory Overview

Ultra White 5 Digit LED Display for Digital Indicators 4

Ultra White 5 Digit LED Display for Digital Indicators 5

Ultra White 5 Digit LED Display for Digital Indicators 7

Company Exhibitions

Ultra White 5 Digit LED Display for Digital Indicators 8

Ultra White 5 Digit LED Display for Digital Indicators 9

Various transportation methods

Ultra White 5 Digit LED Display for Digital Indicators 10

FAQ

FAQ(Frequently Asked Questions)

Q1 Are you trading company or manufacturer

A: We are original manufacturer with more than 20 years experience in optoelectronic LED displays .

Q2 What is your main products

A: Our main products include 7 Segment LED display, SMD LED Display,Dot matrix LED Display, Arrow LED display, Custom Design LED Display ,LED light bar,Through hole led, SMD LEDs,LED Backlights, and so on .

Q3 What is your MOQ

A: Our MOQ is 1000 pcs , We can also accept sample orders and small orders with quantity less than our MOQ .

Q4 Before placing order, Can I get some samples for test

A: Yes. We can provide 5-10 free samples for your testing, but the freight cost will be borne by the customer.

Q5 How long is your delivery time

A: Delivery time:About 10-20 days; According to order quantity and raw materials. If you have urgent order,and we have raw materials in stock,
we can adjust our production plan to make it ready within 7-10 days .

Q6 What is your terms of payment

A: We accept bank transfer,T/T,Western Union and Paypal with small amount. Detailes of payment methods can be negotiatble.

Q7 Can you quote me FOB prices

A: Yes. We can quote you prices based on incoterms EXW, FOB, CIF,DDP.

Q8 How can I get your catalogue and price list

A: Yes . Please let us know your email address or contact us from website directly for our catalogue and price list .

Q9 Can I negotiate the prices

A: Yes, we may consider discounts for bulk orders.

Q10 How much will the shipping charges be

A: It depends on the size of your shipment and the method of shipping.
We will offer the charge to you as you requested.

Q11 Can you do custom design products

A: Yes , OEM&ODM service are available .We can customize the sizes,led color and functional icons according to your requirements.

Q12 If I send my design , can you make it for myself only ,and will not show it to any one else

A: Yes , we will not show it or sell to others without your authorization.

Q13 IWhat will be the samples lead time for customzied products

A: Samples lead time will be about 20-25 working days after receiving mold cost and mold drawing approval from customers .

Q14 What is the shipping methods

A:We usually ship the goods by DHL, FEDEX,UPS,EMS,BY AIR,BY SEA etc, also you can choose the other way that best for you.

Q15 How do you ensure the quality of your products

A: we are ISO 9001 QMS ceritified manufacturers with more than 20 years experience ,We conduct twice 100% percent test for all of our products before shipment .
