White/Green Customized 7 Segment LED Display for Electric Scooter

White/Green Customized 7 Segment LED Display for Electric Scooter

Marka Adı:	LIGHT-BO
Model Numarası:	LB6031AWRG3S-T2-D-JT
Adedi:	1000
fiyat:	Negotiate
Ödeme Şartları:	T/T, Western Union
Tedarik Yeteneği:	20000 pcs/gün

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri:

Shenzhen ， Çin

Sertifika:

ISO9001&RoHS

Modeli:

isteğe bağlı olarak özel model

Garanti:

üç yıl

Renk:

Beyaz Yeşil

İleri Akım:

Ekran Fonksiyonu:

Video, Grafik, Animasyon, Resim, Görüntü

Başvuru:

Elektrikli Scooter

Ambalaj bilgileri:

Epe+karton

Yetenek temini:

20000 pcs/gün

Vurgulamak:

customized 7 segment LED display

electric scooter LED display

white green LED display

Ürün Tanımı

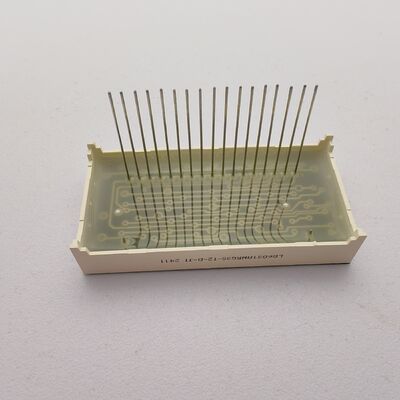

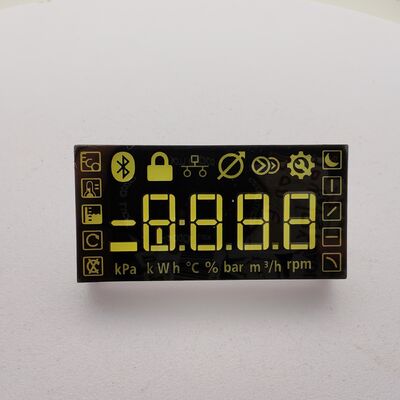

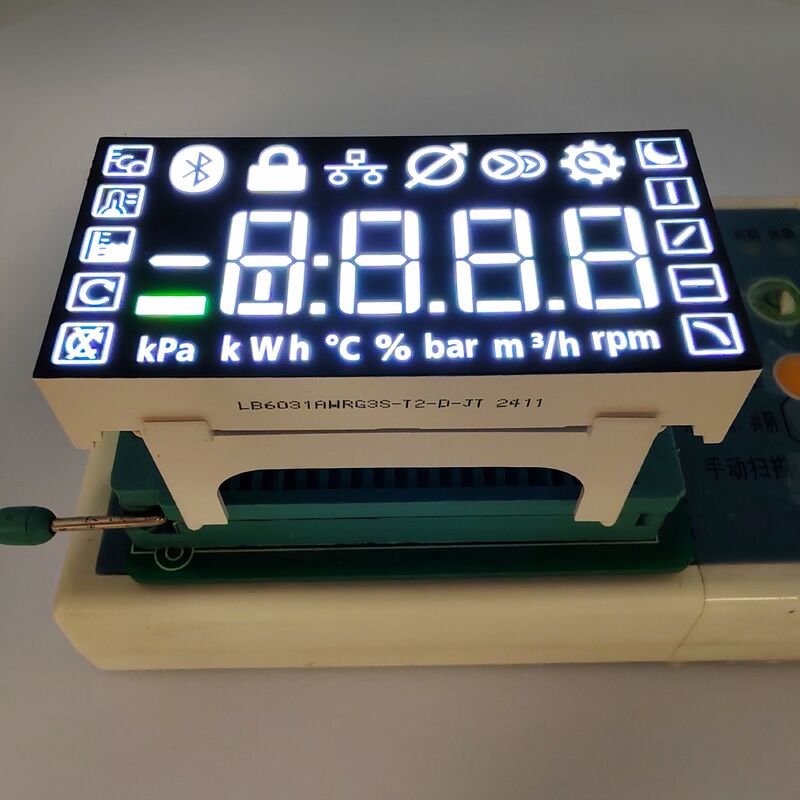

White/Green Customized 7 Segment LED Display for Electric Scooter

Product Specifications

Product Name	White/Green Customized 7-Segment LED Display for Electric Scooter	Other color and configuration options available
Part Number	LB6031AWRG3S-T2-D-JT	Custom part number printing supported
Standard Color	White & Green	Also available in white, blue, pure green, yellow-green, orange, etc.
Polarity	Common Anode	Common Cathode option available
Lifespan	80,000 hours	-
Free Samples	Available	-
Sample Lead Time	5-7 working days (standard samples) 15-20 working days (tooling samples)	-
Production Lead Time	15-20 working days	May vary depending on order quantity
OEM & ODM	Supported	Customization based on your drawings or ideas
LOGO Printing	Supported	According to your provided drawing or design
Minimum Order Quantity (MOQ)	1,000 PCS	100-500 PCS acceptable for initial orders

Key Features

High Luminous Efficiency: Operates at forward voltage with high-intensity output, ensuring brilliant and efficient performance
Low Power Consumption: Energy-saving operation with extremely low operating current
Uniform Illumination: Seamless visual consistency with evenly distributed brightness across all segments
Standard Sizing: Designed to fit seamlessly into your systems with industrial standard dimensions
High Reliability in Bright Light: Exceptional visibility and reliable performance in bright ambient conditions
Stable Performance: Consistent and unwavering reliability for long-lasting operational excellence
Long Lifespan: Crafted for durability with extended operational life, minimizing replacement needs
Environmental Compliance: Meets RoHS and REACH standards for environmentally responsible performance

Technical Parameters

Yellow Green (Code: J/JU)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8	-	2.4	V
Reverse Voltage	Vr	Ir=10uA	5	-	-	V
Luminous Intensity	Iv	If=10mA	30	-	40	mcd
Spectrum Width Of Half Value	△λ	If=10mA	-	20	-	nm
Wavelength	Dλ	If=10mA	569	-	574	nm

Amber/Yellow (Code: Y)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8	-	2.5	V
Reverse Voltage	Vr	Ir=10uA	5	-	-	V
Luminous Intensity	Iv	If=10mA	60	-	80	mcd
Spectrum Width Of Half Value	△λ	If=10mA	-	20	-	nm
Wavelength	Dλ	If=10mA	585	-	595	nm

Orange (Code: F)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8	-	2.4	V
Reverse Voltage	Vr	Ir=10uA	5	-	-	V
Luminous Intensity	Iv	If=10mA	60	-	80	mcd
Spectrum Width Of Half Value	△λ	If=10mA	-	20	-	nm
Wavelength	Dλ	If=10mA	600	-	605	nm

Absolute Maximum Ratings (Ta=25ºC)

Parameter	Symbol	Ratings	Unit
Forward Current (per dice)	Ipm	20	mA
Reverse Voltage (per dice)	Vr	5	V
Power Dissipation (per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	ºC
Storage Temperature Range	Tstg	-40~+85	ºC
Solder Temperature (≤3 seconds)	Th	260	ºC

Company Profile

Shenzhen Guangzhibao Technology Co., Ltd. (BRAND: LIGHT-BO), established in 2006, symbolizes excellence in OEM and ODM services. As an ISO 9001:2015 certified leader, our legacy of over 15 years is marked by quality and innovation.

LIGHTBO propels clients to new heights with high-quality, cost-effective custom solutions, reducing expenses and fortifying competitive advantages globally.

Applications

Our innovative products find applications in home appliances, temperature and humidity indicators, refrigerator controllers, thermostats, and heating and cooling systems, showcasing our commitment to performance.

Frequently Asked Questions

Q1: Are you trading company or manufacturer?

We are original manufacturer with more than 20 years experience in optoelectronic LED displays.

Q2: What is your main products?

Our main products include 7 Segment LED display, SMD LED Display, Dot matrix LED Display, Arrow LED display, Custom Design LED Display, LED light bar, Through hole led, SMD LEDs, LED Backlights, and more.

Q3: What is your MOQ?

Our MOQ is 1000 pcs. We can also accept sample orders and small orders with quantity less than our MOQ.

Q4: Before placing order, Can I get some samples for test?

Yes. We can provide 5-10 free samples for your testing, but the freight cost will be borne by the customer.

Q5: How long is your delivery time?

Delivery time: About 10-20 days; According to order quantity and raw materials. If you have urgent order and we have raw materials in stock, we can adjust our production plan to make it ready within 7-10 days.

Q6: What is your terms of payment?

We accept bank transfer, T/T, Western Union and Paypal with small amount. Details of payment methods can be negotiable.
